锡膏搅拌机

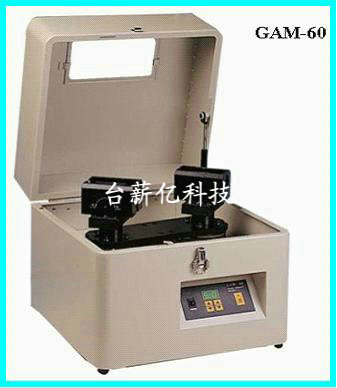

High-speed cream solder machine
特 点:
*操作简易Easy to Operation GAM 60锡膏搅拌机的操作是非常单纯容易。只需将锡膏罐置于万用治具上,设定好搅拌时间后,按启动键即可,搅拌完成,机器会自动停止。
The operation of GAM-60 solder paste mixer is very simple. Loading the solder paste container into universal holder then press "Start ”button, The GAM-60 will mix the solder paste after your setting time the machine will stop automatically, The well mixed solder paste is ready for printing .Setting the timer by press the increasing and decreasing button ,The LED display the setting time .
*良好的搅拌能力Well Mixing CapacityGAM-60锡膏搅拌机提供非常强的锡搅拌能力。任何人都能够准备均匀的锡膏搅拌,使SMT印刷制程简单化。
The GAM-60solder paste mixer provide powerful solder paste mixing capacity, Anyone can preparation the well mixed solder paste to simply the printing proceed in SMT line ..
*适用性强FlexibilityGAM-60锡膏搅拌机备有万用治具功能。适用任何厂牌的锡膏容器。
The GAM-60solder paste miner equipped with universal solder paste container holders, Which can hold most of commercial solder paste container, The holders are very easy to load and unload the solder past container
*准确的操作时间控制Precise Operation Time ControlGAM 60锡膏搅拌机采用电子式计算器及LED显示。操作时间设定简易(0.1~9.9分钟)。搅拌时间终了,以蜂鸣器警报告知。
The GAM-60equipped with electronic timer and LED display, it is very easy to operate and the setting rang from 6 seconds to 9.9minutes by 6seconds index.
*低保养Low Maintenance密封式轴承,不需经常润滑及保养。
The GAM-60solder paste mixer provided lubrication and maintenance free operation.
*安全性GAM 60锡膏搅拌机在启动运转之后,上盖有Interlock安全锁装置。
规格:
电源 Power Supply |
AC110V或AC220V(可切换) AC 110V / 220V 60HZ |
工作能力 Solder Container |
同时搅拌两罐锡膏500克或1000克 500g / 1000g Up two container can be loaded |
运转速度 Arm Rotation Speed Approx |
400rpm/min (WHEN LOADED) |
微电脑处理能力 Micro processor Capability |
断电自动记忆 Record former data by memory Revise data for save real time |
显示与警告 Display & Alarm |
LED数字显示,灯光闪烁,蜂鸣警告 LED Digital Display Flash light with audio alarm |
搅拌时间 Kneading timer |
0.1-9.9分钟数字设定0.1~9.9 Min |
锡膏夹具 Holding |
万用治具 suitable different kind solder past container. |
噪音 Noise |
低操作声音 Low operation noise |
机械尺寸 Dimension |
L410*W410*H400mm |
重量weight |
33kg |
