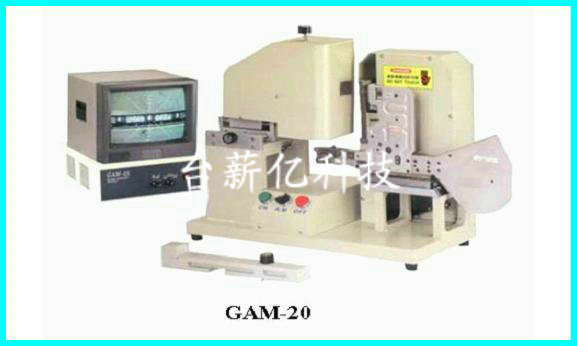

SMD料架检查机
Calibra Tion Jjg Machine Mixer
特点:
1.使用气压控制,模似SMT料架供、取料作业状态。
2.可提供料架离线仿真检修调校作业
3.给料架速度可做手动和自动调整方便定位检修
4.可适合同一机种不同尺寸零件整修调校
5.针对不同厂牌、机型、规格制定配合
1.Controlled by air, simulate the SMT feeding condition.
2.Provide off-line simulating adjustment system
3.Feeding speed adjustable to Manual /Auto, easy to fix and position.
4.Suitable for the adjustment of different size of parts in the same model.
5.Custom-made for different brand, model and specification
产品应用:
1.SMT作业各式料架功能性品管检修
2.料架抛料缺失,改善作业工具
3.提供料架检修人员维修调校的基准工具
.1.adjust each kind of SMT operating feeders.
2.Improve the process quality and avoid the feeding effect.
3.Provide the standard tool for maintenance.
规格:
驱动方式Driving method |
AIR控制 Air controlled 5㎏/㎝² |
模拟给料速度 Simulation of feeding speed |
上下速度可做手动、自动调整Auto/Manual adjustable |
调校方式Adjustment method |
内十字产生器配合X、Y、Z轴调校 X, Y, Z axis adjust by inner cross line |
显示Display system |
彩色CCD和14时屏幕Color CCD ad 14″monitor |
治具Standard jig |
随不同机型提供According to different model |
控制器电压Power supply |
110V 60Hz /220V 50Hz |
重量Weimar |
料架固定器Main Mechanism :36㎏ |
控制器Control System :0.5㎏ |
|
尺寸Dimensions |
料架固定座Main Mechanism:550*250*550㎜ |
控制器 Control System:370*250*100㎜ |
